HOME > Arete > Bench Vice > 1131

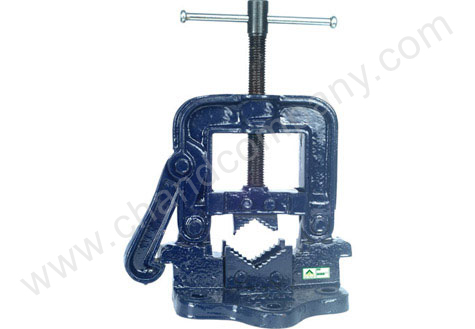

ARETE Code 1131
Hinged Pipe Vice
( S.G. Ductile Iron Body )
( Size : 1.1/2", 2", 2.1/2"3, 1/2", 4.1/2", 6" ) Features :
  • Hinged Pipe vice so called because the frame (containing the main screw and top jaw ) and the base are hinged together.
  • To grip a pipe the frame is hinged back and the pipe loacted on the lower jaw. When the frame is hinged own a locking hook automatically engages onto the side of the base holding the vice firmly shut. Ideal for fast repetitive work.
Construction :
  • The replaceable steal jaws are accurately machined, hardened and tempered.
  • The handle and main screw is also made of steal while the frame and base is made of strong SG ductile Cast Iron.
Application : Enameled oxford blue.
Specifications
Pipe Dia Capacity (in inches) Pipe Dia Capacity (in mm) Weight (app. in Kgs.)
1.1/2 40 2.7
2 50 4.1
2.1/2 60 5.7
3.1/2 85 7
4.1/2 115 11
6 150 21
Hinged Pipe Vice 1131
Size in mm Price Each Rs. STD. PKG.
40 856 ++ 8
50 1071 ++ 8
60 1499 ++ 4
85 2244 ++ 3
115 3160 ++ 2
150 6710 ++ 2
