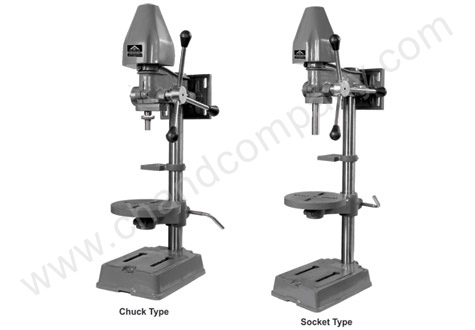

Drilling Machine 13MM
(Chuck & Socket Type) Features :

Drill head and arm are bored to a very closed tolerance.
Spindle Pulley & Motor Pulley are perfectly balanced to avoid vibration.
Spindle, Pinnion & RAM are made of EN-8 & Precision Ground.
Table is accurately machined for precision work.
Casting Grade:25
Hardened: 160-200 BHN.

Rack & Pinion Model also available.

Technical Specifications
Drilling Capacity in Steel	13 mm
Spindle Travel	75 mm
Column Diameter	47 mm
Piller Length	750
Distance BTW Center of Spindle & Pillar Front	155 mm
Max Distance BTW spindle and table	200 mm
Max Distance BTW spindle to base	290 mm
Table Working Surface	205 mm
Base Working Surface(Machined)	190 x 170 mm
Overall size of Base	305 x 220 mm
No. of Spindle Speed	4
Range of Spindle Speeds(rpm)	678-1035-1558-2333
V-Belt	A36
Motor	½ H.P
Motor Speed	1440 RPM
Net Weight	34 Kgs.

Drilling Machine 13MM
