CHAND COMPANY - Arete Drilling Machine Tap

DIGITAL CALIPER

Resolution: 0.01mm/0.0005"
Model No.: 1112-150
Price : 1586
Model No.: 1112-200
Price : 2409
Model No.: 1112-300
Price : 4428

VERNIER CALIPER

Graduation:0.02mm/0.001
Model No.: 1205-1502
Price : 1185

DIAL CALIPER

Graduation: 0.01mm
Model No.: 1312-150A
Price : 2103
View

DIGITAL HEIGHT GAUGE

Resolution: 0.01mm/0.0005"
Model No.: 1150-300
Price : 11843

DIAL INDICATOR

Graduation:0.01mm
Model No.: 2301-10
Price : 1210

Dial Test Indicator

Graduation: 0.01mm
Model No.: 2380-08
Price : 2178

BORE GAUGE

Repeatability:0.003mm
Model No.:2322-35A
Price : 4913

Model No.:2322-60A
Price : 4914

Model No.:2322-160A
Price : 5101

MAGNETIC STAND

For digital/dial indicators and dial test indicators
Model No.: 6201-60
Price : 861

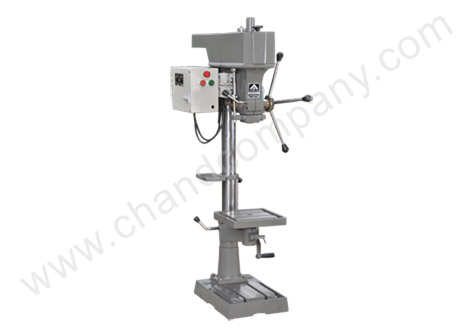

Drilling Machine 20MM

ARETE Drilling cum Tapping Machine is a heavy duty machine having drilling.
Tapping capacity in Steel 12mm, CI 16mm and has 8 spindle speeds.
Highly versatile for Tapping, Drilling, Reaming and screwing at preset depth.
Easy to install, simple to operate, no extra skill required.
Dual operation of Tapping and Drilling without any extra attachment. The mere flick of switch sets the machine from Tapping to Drilling and vice-versa.
Automatic reversal of spindle at preset depth and changes the direction of spindle automatically back to normal.
Simple back gear arrangement facilitates 8 spindle speeds to suit the cutting speeds.

Technical Specifications
Drilling Capacity in Steel	20 mm	25 mm ( Medium )	25mm ( Heavy )
Drilling Capacity in Cast Iron	22 mm	28 mm	32 mm
Tapping capacity in steel	12 mm	---	---
Tapping Capacity in Cast Iron	16 mm	---	---
Morse Taper in spindle	MT-2	MT-3	MT-3
Distance column to center of spindle	204 mm	204 mm	240 mm
Max Distance spindle to table	410 mm	525 mm	560 mm
Max Distance spindle to base	800 mm	1000 mm	1065 mm
Column Length	1067 mm	1300 mm	1300 mm
Column Diameter	71 mm	77 mm	86 mm
Table Working Surface	270 x 270 mm	Round 355 mm	400 x 400 mm
Base Working Surface	230 x 270 mm	360 x 510 mm	600 x 375 mm
Spindle Speed	Eight Speed 150- 2835 RPM	Six Speed 90- 1065 RPM	Eight Speed 90- 2000 RPM
V-Belt	A-46	B-48	B-52
Weight (app.)	135Kgs.	148Kgs.	215Kgs.
Recommended Motor	1 H.P. 1440 RPM	2 H.P.960 RPM	2 H.P.960 RPM

Drilling Machine Cum Tapping Machine
