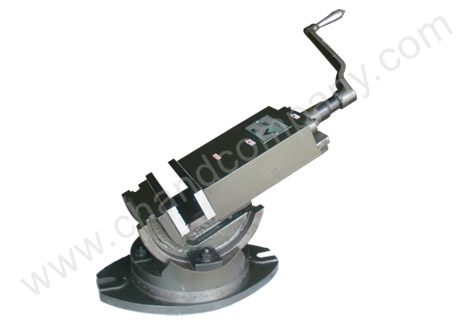

ARETE Code 1101 Tilting & Swiveling Vice
( Size : 4", 6", 8" ) Features :

• Manufactured to consistent accuracy to give prolonged reliable service.
• Bearing Surface Precision ground. Flatness within 0.0012" (30 microns)
• Once locked impossible to shift.
• Totally enclosed acme screw with three point location of operating in Manganese Steel Nut.
• Tenon Slot machined in back as standard for CNC use.
• Swivel base graduated through 360°
• Vertical Tilting Capacity 90°

Application :

• Suitable for Milling - Grinding - Shaping- Drilling and Jig Boring.

Construction :

• These Vices are manufactured from close grained Hi Tensile seasoned Cast Iron.
• Jaws : Fully hardened (50±3 HRC) and ground tool steel jaws with parallelism within 0.0012" (30 microns)
• Spindle : Precisely cut ACME threads with pitch most suitable for firm gripping and smooth operations.
• Nut : Hot stamped manganese steelz nut contained in totally enclosed sliding jaws.
• Fasteners : All fasteners used in the vices are grade 10.8 which provide extended strength and rigidity to these vices
• Supplied Complete with Steel Handle.

Finish : Amazon Green

• Code SG1101 : SG Ductile Iron Body

Finish : Hammer tone metallic blue
