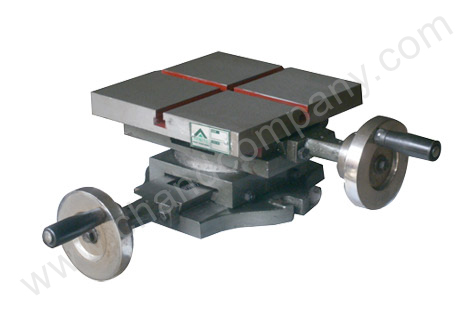

ARETE Code 1107 Compound Sliding Table (with calibrated wheels & swivel graduated base)
( Size : 6x6, 8x8, 10x10, 12x8, 12x12, 12x20, 16x16) Features :
  • The T-Slots are machined from Solid.
  • Equipped with two axis positioning.
  • Dovetailed slides have adjustable steel gibs to compensate for wear.
  • The surface table can swivel all round and 0° is marked to show the angular movement.
  • Base have bolt slots for machine mounting.
Application :
  • These precision built standard slide tables are essential for accurate boring drilling, grinding, and milling operations
Construction :
  • Casting are the close Grey Iron dully stress relieved accurately machined and ground surface provide tolerance well within 0.01 MM / 100 MM.
  • Precision ACME feed screw is running in a hot stamped phosphor Steel Nut thrust color for smooth operation and minimum back lash.
  • Top surface of the table has two equally spaced cross T-Slots.
Finish : Amazon Green
Specifications
Size in inches Table Size
(in mm )		 Height overall
(in mm) 		Length overall
(in mm) 		T-Slot Size
(in mm)		 Travel Bothways
(in mm)		 Swivel Graduation Wheel Graduation
(in inches)		 Weight
(in Kgs.)
6x6 150x150 102 300 10 100x100 360 .001 18
8x8 200x200 102 350 10 125x125 360 .001 19
10x10 250x250 130 350 13 125x125 360 .001 24
12x8 300x200 120 510 13 200x125 360 .002 40
12x12 300x300 110 510 13 200x200 360 .002 45
12x20 300x500 143 750 16 300x400 360 .002 95
16x16 400x400 143 645 16 300x200 360 .002 105
Compound Sliding Table 1107
Size in mm Price Each Rs. STD. Pkg.
150x150 6501 ++ 1
200x200 7880 ++ 1
250x250 10209 ++ 1
300x200 13313 ++ 1
300x300 15170 ++ 1
300x500 29746 ++ 1
400x400 33230 ++ 1
