HOME > Arete > machineVice > 1115

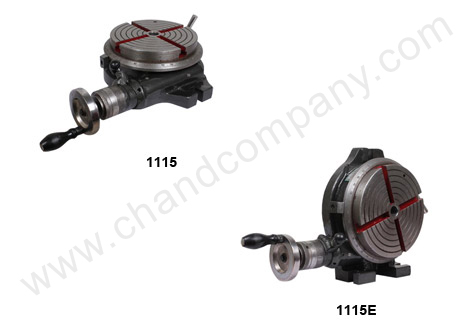

ARETE Code 1115 & 1115E Rotary Milling Table 1115 : Rotary Milling Table ( Plain Model )
1115E : Universal Rotary Milling Table ( Horizontal & Vertical )
( Size : 6", 8", 10", 12", 15", 18", 20" ) Features :
  • High accuracy, easy reading of all dias clear & functional of all operating elements, sturdy yet good looking practical design. These are widely used for circular cutting, angle cutting, boring and spot facing with a milling machine.
  • Works as an index center in the vertical position, as well as conventional Rotary Table, graduated 360°
  • Provision for fine adjustments when settings work piece.
  • Efficient lock provided.
  • Worm drive disengagement is quick and precise. An eccentric sleeve with thrust Bearing races encases the worm shaft.
  • End play in worm shaft is adjustable.
Application :
  • ROTARY TABLES have a sturdy design to suit many machining operations on Milling Machines including circular cutting, setting angles and indexing. They are available in a range of sizes to suit various machines and machining applications.
Construction :
  • The table and base is manufactured from close grain shock resisting Cast Iron dully stress relieved
  • Worm & center table bush made of selected steel.
Inspection :
  • Direct reading to 2 minute for size 6",8" and 10" on hand
    wheel scale.
  • Direct reading to 1 minute for size 12",15",18" and 20" on
    hand wheel scale.
  • ACCURACY:- Maximum error 4 minutes of circular
    division using hand wheels.
  • Table flat to within 0.01 mm / 100 mm.
  • Working surface rotates in its own plane to within 0.030
    mm.
  • Horizontal and Vertical supporting surface square with
    0.01mm/100 mm.
  • Centre bush bore is true to table axis within 0.03 mm.
  • Maximum parallelism error through 360° rotation of table
    is .025 mm .
  • The Base is provided with two bolt slots in
  • 1115E : Both horizontal slots in & Vertical mounting on machine table.
Finish : Hammer tone mid grey
Specifications
Size in inches Dia of Table (in mm) Table T-Slot Size (in mm) Centre Bush Bore (morse taper) Worm & Gear Ratio Wheel Calibration
( in minutes )		 Height Overall
(in mm) 1115E Vertical 		Height Overall
(in mm)
1115 & 1115E Horizontal (in mm)		 Weight
(app. in Kgs) Code 1115		 Base to centre 1115E Weight
(app. in Kgs) Code 1115E
6 150 10 2 1:72 2 240 95 14 125 16
8 200 13 3 1:72 2 300 105 23 160 27
10 250 13 3 1:72 2 365 110 36 180 42
12 300 16 3 1:120 1 425 130 55 220 65
15 375 16 3 1:120 1 530 135 95 265 100
18 450 20 4 1:120 1 620 160 162 315 175
20 500 20 4 1:120 1 620 160 177 315 187
No of Indexing Holes (1115H)

19 | 27

23 | 25

30 | 33

28 | 31

41 | 47

39 | 43

19 | 27

23 | 25

30 | 33

28 | 31

41 | 47

39 | 43

53 | 61

51 | 59
Weight (app. in Kgs) 2.5 2.5 2.5 3.5 3.5 3.5 3.5
Rotary Milling Table 1115
Size in mm Price Each Rs. STD. Pkg.
150 7787 ++ 2
200 9743 ++ 1
250 12218 ++ 1
300 20088 ++ 1
375 29034 ++ 1
450 48009 ++ 1
500 53108 ++ 1
Universal Rotary Milling Table 1115E
Size in mm Price Each Rs. STD. Pkg.
150 8837 2
200 11075 1
250 14526 1
300 23524 1
375 28910 1
450 56538 1
500 60756 1

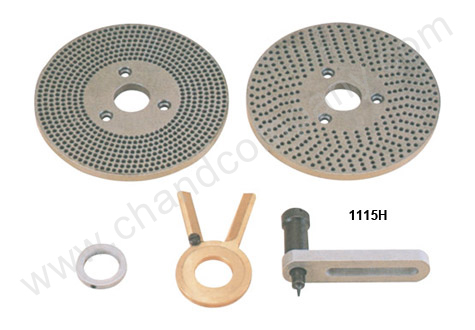

Indexing Device 1115H
Small H-1
Size in mm Price Each Rs. STD. Pkg.
150 3646 4
200 3646 4
250 3646 4








Large H-2
Size in mm Price Each Rs. STD. Pkg.
300 4301 4
375 4031 4
450 4301 4
500 4301 4
