HOME > Arete > machineVice > 1135

ARETE Code 1135

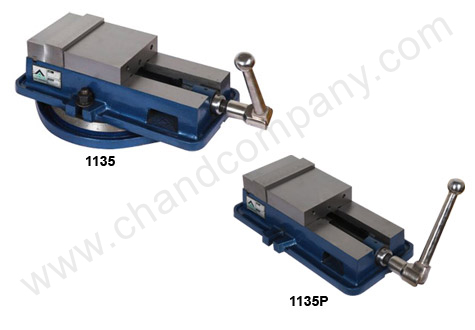

Tilt Lock Machine Vice
Unbreakable Ductile Iron Cast Body
( Size : 4", 5", 6", 8" ) Features :
  • Tilt Lock Machine Vice design is beamlike with two vertical and horizontal rails connected to the base.
  • You can hold piece parts in the most immobile state possible.
  • Flame Hardened Bed.
  • All parts interchangeable and available as spares.


Three Basics in precision Clamping
  1. That the movable jaw does not lift off the bed.
  2. That the body is rigid, and that a minimum amount of bending stresses are created in the clamping area.
  3. That deflection of the stationary jaw is minimized.
  • Totally enclosed toughened Screw.
  • Accuracy in Parallelism & squareness within 0.02 mm.
Construction :
  • Unbreakable ductile iron cast body. Die Steel (EN-31) hardened & ground jaws.
  • In addition to the rigid design charactereristics, a large heavy nut is drawn up againest the machined ways on the inside vice as the movable jaw is drawn down. This creates a heavy mass of material under compression and extremely resistant to bending stresses.
  • 4 Jaws Plate positions allowing extra capacity with the jaw plates in the outside position.

Specifications
Size in Inches Width of Jaws (in mm) Depth of Jaws (in mm) Between Jaws position 1 (in mm) Between Jaws position 2 (in mm) Between Jaws position 3 (in mm) Between Jaws position 4 (in mm) Width Overall (in mm) Code 1135 Width Overall (in mm) Code 1135P Height Overall (in mm) Code 1135 Height Overall (in mm) Code 1135P Tenon Slot Size (in mm) Length Overall (in mm) Weight (app. in Kgs.) Code 1135 Weight (app. in Kgs) Code 1135P
4 100 37 100 160 230 280 230 190 140 100 16 360 21 15
5 125 40 125 185 270 330 260 221 165 123 20 410 35 25
6 150 48 160 227 315 380 310 248 163 128 20 480 44 34
8 200 60 225 310 420 505 405 309 221 165 20 620 91 63
Tilt Lock Machine Vice (Swivel Model) 1135
Size in mm Price Each Rs. STD. Pkg.
100 10703 ++ 1
125 14237 ++ 1
150 17722 ++ 1
200 34067 ++ 1
Tilt Lock Machine Vice (Iron Body) 1135P
Size in mm Price Each Rs. STD. Pkg.
100 9960 ++ 1
125 11388 ++ 1
150 15915 ++ 1
200 29002 ++ 1
