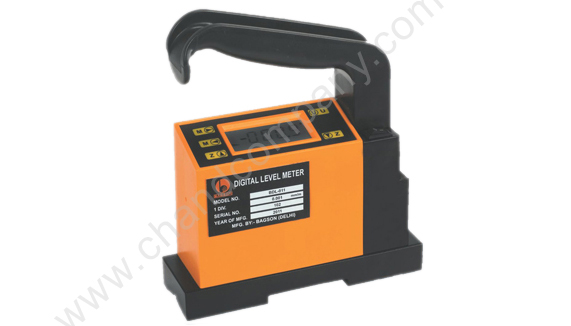

Digital Level Meter
The higest accuracy of the new products: 0.001 mm/m
New products adopt numerical circuit improved antijamming.
Standard interface output RS232 could communicate with computer diretcly.
Valued function of storage, read and delete the measured data, store data upto 999.
Adjust accurately and zero setup at any position keypress (absolute zero position and relative zero position)
COnserve and recover the factory settings are available.
Two optional measuring units: mm/m and angle (second).
Be provided with the function of automatic temprature measuring.
Be provided with automatic temperature measuring.
Be provided with automatic electrical source voltage supervising and low voltage warning function.
Power supplied by AA battery.
Easy to operate by touch style induction panel.
Model | Resolution | Technical Data | Application |
BDL 11 | Phase I = 0.01 mm/m | Display Range: 0~±1999
Measuring Range: < ±500
Error of Display: ± (1 + A x 2%)
Represents the absolute value of the displayed value of the measured position.
| Suit to measure the flatness and straightness of grade "00" products. |
Phase II = 0.001 mm/m |
BDL 10 | Phase I = 0.01 mm/m | Suit to measure the flatness and straightness of grade "0" products. |
Phase I = 0.005 mm/m |
BDL 9 | 0.01 mm/m | Suit to measure the flatness and straightness of grade "1" and grade "2" products.
Useful for machine tool manufacturers. |
