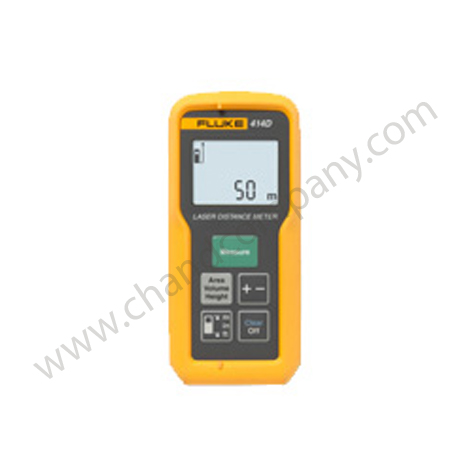

Fluke 414D Laser Distance Meter
Put the Fluke 414D on your tool belt and reach beyond the common tape measure - up to 50 meters (165 ft). This professional-grade laser distance meter is fast and easy to use, improving accuracy and reducing measurement errors. You’ll save time and money at every step.

SR.	Fluke CODE	Price In Rs.
1	414D	4,700

	414D	419D	424D
Distance Measurement
Typical Measuring Tolerance[1]	± 2.0 mm [3]	± 1.0 mm [3]
Maximum Measuring Tolerance[2]	± 3.0 mm [3]	± 2.0 mm [3]
Range at Leica target plate GZM26	50 m / 165 ft	80 m / 260 ft	100 m / 330 ft
Typical Range[1]	40 m / 130 ft	80 m / 260 ft	80 m / 260 ft
Range at unfavorable condition[4]	35 m / 115 ft	60 m / 195 ft	60 m / 195 ft
Smallest unit displayed	1 mm / 1/16 in	6 /30 / 60 mm (10 / 50 / 100 m)
∅ laser point at distances	6 /30 / 60 mm (10 / 50 / 100 m)	6 /30 / 60 mm (10 / 50 / 100 m)
Tilt measurement
Measuring tolerance to laser beam[5]	No	No	± 0.2°
Measuring tolerance to housing[5]	No	No	± 0.2°
Range	No	No	360°
General
Laser class	2
Laser type	635 nm, <1 mW
Protection class	IP40	IP54
Automatic laser off	After 90 seconds
Automatic power off	after 180 seconds
Battery life (2 x AAA) 1.5 V NEDA 24A/IEC LR03	Up to 3,000 measurements	Up to 5,000 measurements
Size (H X W X L)	116mm Length 53mm Width 33mm Depth	127mm Length 56mm Width 33mm Depth	127mm Length 56mm Width 33mm Depth
Weight (with batteries)	113 g	153 g	158 g
Temperature range: Storage Operation	-25 °C to +70°C (-13 °F to +158 °F) 0 °C to +40 °C (32 °F to +104 °F)	-25 °C to +70°C (-13 °F to +158 °F) -10 °C to +50 °C (14 °F to +122 °F)
Calibration cycle	Not applicable	Not applicable	Tilt and compass
Maximum altitude	3000 m	3000 m	3000 m
Maximum relative humidity	85% at 20 °F to 120°F (-7 °C to 50 °C)	85% at 20 °F to 120°F (-7 °C to 50 °C)	85% at 20 °F to 120°F (-7 °C to 50 °C)
Safety	IEC Standard No. 61010-1:2001 EN60825-1:2007 (Class II)
EMC	EN 55022:2010 EN 61000-4-3:2010 EN 61000-4-8:2010
[1] Applies for 100 % target reflectivity (white painted wall), low background illumination, 25 °C. [2] Applies for 10 to 500 % target reflectivity, high background illumination, -10 °C to +50 °C. [3] Tolerances apply from 0.05 m to 10 m with a confidence level of 95 %. The maximum tolerance may deteriorate to 0.1 mm/m between 10 m to 30 m and to 0.15 mm/m for distances above 30 m. [4] Applies for 100 % target reflectivity, background illumination between 10'000 lux and 30'000 lux. [5] After user calibration. Additional angle related deviation of ±0.01° per degree up to ±45° in each quadrant. Applies at room temperature. For the whole operating temperature range the maximum deviation increases by ±0.1°.
