HOME > fluke > Clamp Meter > FLUKE - CODE 317-319

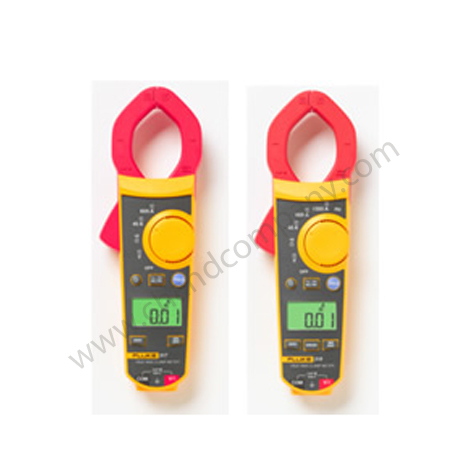

Fluke 317-319 Clamp Meter
The Fluke 317 and 319 are designed with ergonomic concepts, shaped to fit your hand and to access tight spots easily. These small and rugged clamp meters are ideally suited for current measurements up to 1000 A (319) in tight cable compartments. The Fluke 317and 319 also offer AC/DC current measurements and have a higher resolution for loads below 40 A. In addition to a compact package with a strong feature set, the Fluke 319 also equips with In-rush current and Frequency functions for testing motors, lighting, etc.
SR. Fluke CODE Price In Rs.
1 317 15,500
2 319 22,400


General Specifications
Digital Display
 6000 count resolution
Low Battery Indication
 Displays a signal when the batteries are below their required voltage
Power Source
 Three AAA IEC LR03 batteries
Clamp Opening Size
 1.45 in (37 mm)
Jaw Diameter
 1.45 in (37 mm)
Dimensions (L x W x H)
 6.39 in x 2.29 in x 1.20 in
 (162.4 mm x 58.25 mm x 30.5 mm)
Weight
 approximately 13.5 oz (384 g) (batteries included)
Auto Range
 Available in Ohms
Safety
 CE
 EN/IEC 61010-1 and IEC 61010-2-032
 Measurement Category: 600V CAT III

317 Electrical Specifications
Current AC
Range  40.00 A, 600.0 A
Resolution  0.01 A, 0.1 A
Accuracy  1.6% ± 6 digit (50-60 Hz) {40 A}
 2.5% ± 8 digit (60-500 Hz) {40 A}
 1.5% ± 5 digit (50-60 Hz) {600 A}
 2.5% ± 5 digit (60-500 Hz) {600 A}
Crest Factor add 2% into spec for CF > 2  3.0 Max @ 500 A, 2.5 Max @ 600 A
AC response  rms
Current DC
Range  40.00 A, 600.0 A
Resolution  0.01 A, 0.1 A
Accuracy  1.6% ± 6 digit (40 A)
 1.5% ± 5 digit (600 A)
Voltage AC
Range  600.0 V
Resolution  0.1 V
Accuracy  1.5% ± 5 digit (20-500Hz)
AC response  rms
Voltage DC
Range  600.0 V
Resolution  0.1 V
Accuracy  1% ± 4 digit
Resistance
Range  400.0 Ω, 4000 Ω
Resolution  0.1 Ω, 1 Ω
Accuracy  1% ± 5 digit
Continuity
 ≤ 30 Ω
Inrush
Integration time  N/A
Frequency
Range  N/A
Accuracy  N/A
Trigger Level  N/A



319 Electrical Specifications
Current AC
Range  40.00 A, 600.0 A, 1000 A
Resolution  0.01 A, 0.1 A, 1 A
Accuracy  1.6% ± 6 digit (50-60 Hz) {40 A}
 2.5% ± 8 digit (60-500 Hz) {40 A}
 1.5% ± 5 digit (50-60 Hz) {600/1000 A}
 2.5% ± 5 digit (60-500 Hz) {600/1000 A}
Crest Factor add 2% into spec for CF > 2  3.0 Max @ 500 A, 2.5 Max @ 600 A, 1.4 Max @ 1000 A
AC response  rms
Current DC
Range  40.00 A, 600.0 A, 1000 A
Resolution  0.01 A, 0.1 A, 1 A
Accuracy  1.6% ± 6 digit (40 A)
 1.5% ± 5 digit (600/1000 A)
Voltage AC
Range  600.0 V
Resolution  0.1 V
Accuracy  1.5% ± 5 digit (20-500Hz)
AC response  rms
Voltage DC
Range  600.0 V
Resolution  0.1 V
Accuracy  1% ± 4 digit
Resistance
Range  400.0 Ω
 4000 Ω
Resolution  0.1 Ω
 1 Ω
Accuracy  1% ± 5 digit
Continuity
 ≤ 30 Ω
Inrush
Integration time  100 ms
Frequency
Range  5.0 - 500.0 Hz
Accuracy  0.5% ± 5 digit
Trigger Level  10 - 100 Hz ≥ 5 A, 5 - 10 Hz, 100 - 500 Hz ≥ 10 A

The accuracy specifications aply at 73 °F ± 41 °F (23 °C ± 5 °C)

Below 64 °F and above 82 °F (18 °C and above 28 °C) accuracy degrades at (0.1) times specification per °C.

True rms for ac V and ac A accuracy is specified from 5% to 100% of range.

Environmental Specifications
Operating Temperature
 14°F to 122°F (-10 °C to 50 °C)
Storage Temperature
 -40 °F to 140 °F (-40 °C to 60 °C)
Operating Humidity
 Non condensing (< 50 °F) (< 10 °C)
 90 % RH (50 °F to 86 °F) (10 °C to 30 °C)
 75 % RH (86 °F to 104 °F) (30 °C to 40 °C)
 45 % RH (104 °F to 122 °F) (40 °C to 50 °C)
 (Without Condensation)
Operating Altitude
 1 mile (2000 meters) above mean sea level
Storage Altitude
 7 miles (12,000 meters) above mean sea level
IP Rating
 IP40
Vibration Requirements
 Random MIL-PRF-28800F Class 2, 5-500 Hz, 30 minutes per axis
Drop Test Requirements
 3 ft (1 m) drop test, six sides, oak floor
EMI, RFI, EMC
 Instrument unspecified for use in EMC field ≥ 0.1 V/m
Temperature Coefficients
 0.1x (specified accuracy)/ °C
 (<64 °F or > 82° F)
 (<18 °C or > 28 °C)
