DIGITAL CALIPER

Resolution: 0.01mm/0.0005"
Model No.: 1112-150
Price : 1586
Model No.: 1112-200
Price : 2409
Model No.: 1112-300
Price : 4428

View

VERNIER CALIPER

Graduation:0.02mm/0.001
Model No.: 1205-1502
Price : 1185

View

DIAL CALIPER

Graduation: 0.01mm
Model No.: 1312-150A
Price : 2103
View

DIGITAL HEIGHT GAUGE

Resolution: 0.01mm/0.0005"
Model No.: 1150-300
Price : 11843

View

DIAL INDICATOR

Graduation:0.01mm
Model No.: 2301-10
Price : 1210

View

Dial Test Indicator

Graduation: 0.01mm
Model No.: 2380-08
Price : 2178

View

BORE GAUGE

Repeatability:0.003mm
Model No.:2322-35A
Price : 4913

Model No.:2322-60A
Price : 4914

Model No.:2322-160A
Price : 5101

View

MAGNETIC STAND

For digital/dial indicators and dial test indicators
Model No.: 6201-60
Price : 861

View

HOME > fluke > Digital Multimeter > FLUKE - CODE 101

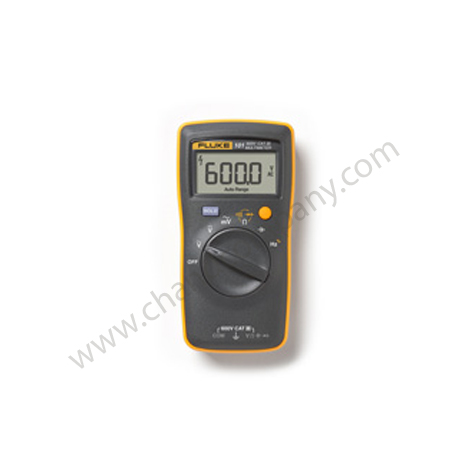

Fluke 101 Basic Digital Multimeter
Designed for basic electrical tests, the Fluke 101 digital multimeter offers reliable measurements for residential/commercial electricians and heating and air conditioning technicians. This small, lightweight multimeter fits comfortably in your hand but is rugged enough to withstand daily use for years to come. When it comes to professional-grade affordable multimeters, the Fluke 101 digital multimeter is your best choice.

SR.	Fluke CODE	Price In Rs.
1	101	2,199

Electrical Specifications
V AC (40-500Hz)	Range	600.0 mV 6.000 V 60.00 V 600.0 V
	Resolution	0.1 mV 0.001 V 0.01 V 0.1 V
	Accuracy	3.0%±3 digit 1.0%±3 digit
V DC	Range	6.000 V 60.00 V 600.0 V
	Resolution	0.001 V 0.01 V 0.1 V
	Accuracy	0.5%±3 digit
Resistance Ohms	Range	400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ
	Resolution	0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ
	Accuracy	0.5 %±3 digit 0.5 %±2 digit 0.5 %±2 digit 0.5 %±2 digit 0.5 %±2 digit 1.5%±3 digit
Capacitance	Range	50.00 nF 500.0 nF 5.000 μF 50.00 μF 100.0 μF
	Resolution	0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF
Frequency (10 Hz – 100 kHz)	Range	50.00 Hz 500.0 Hz 5.000 kHz 50.00 kHz 100.0 kHz
	Resolution	0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz 0.1 kHz
Duty Cycle	Range	0.1 % to 99.9 %
	Resolution	0.1 %
General Specifications
CAT Rating	CAT III 600 V
V AC Range	600.0 V
V DC Range	600.0 V
Ohms Range	40.00 MΩ
Auto Shutoff	Y
Continuity	Y
Capacitor	100.0 μF
Frequency	100.0 kHz
Hold	No
Duty Cycle	Yes
Size	130 mm x 65 mm x 27mm
Weight	160 g
Battery	Two AAA
Warranty	1 year
Environmental Specifications
Operating Temperature	0 °C to +40 °C
Storage Temperature	-30 °C to +60 °C
Operating Humidity	Non condensing (<10 °C) <=90% RH (at 10 °C to 30 °C) <=75% RH (at 30 °C to 40 °C) (Without Condensation)
Operating Humidity, 40 MΩ	80% RH 10 °C to 30 °C, 70% RH 30 °C to 40 °C
Operating Altitude	2,000 meters
Storage Altitude	12,000 meters
IP Rating	IP 40 per IEC 60529
Vibration Requirements	MIL-PRF-28800F, Class 2
Drop Test Requirements	-10°C and 1 meter to surface, per IEC-61010-1, and Fluke SOP 39.1 for portable Hand-held equipment Shipping container drop per Fluke SOP 39.
EMI, RFI, EMC	Must meet all applicable requirements in IEC/EN 61326-1
Absorption/Corrosion	Per Fluke SOP 39.1
Temperature Coefficients	Add 0.1 x specified accuracy for each degree C above 28 °C or below 18 ºC
