HOME > fluke > Digital Multimeter > FLUKE - CODE 115

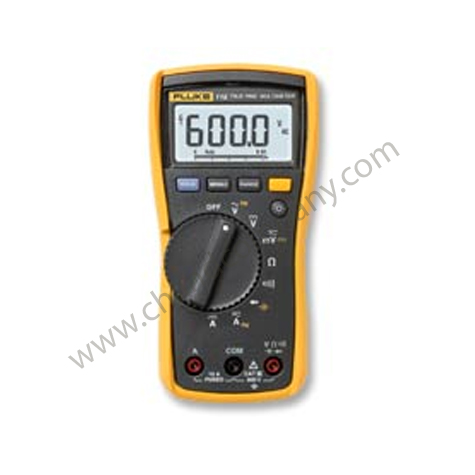

Fluke 115 Multimeter
Designed by electricians. Engineered by Fluke.
For general purpose electrical and electronic test requirements, the Fluke 115 true-rms digital multimeter provides the perfect answer. Its simple operation, compact design and ease of use makes it perfect for quick verifications and field service use.

The Fluke 115 displays true-rms voltage and current readings with 6000 count resolution, tests diodes, frequency, continuity and capacitance and provides Min/Max/Average readings to record signal fluctuations. A large white LED backlight aids work in poorly lit areas. Its easy-open battery access door makes battery changes a snap.

Fluke 115 multimeters are independently tested for safe use in CAT III 600V environments. And check out other members of the Fluke 110 family: the Fluke 113 Utility Multimeter, the Fluke 114 Electrical Multimeter, the Fluke 116 HVAC Multimeter and the Fluke 117 Commercial Electrician’s Multimeter.

Also check out the Fluke 114 Electrical Multimeter, the Fluke 116 HVAC Multimeter with Temperature and Microamps, and the Fluke 117, the Electrician’s Multimeter with Non-contact voltage.

SR.	Fluke CODE	Price In Rs.
1	115	9,400

Specifications

Maximum voltage between any terminal and earth ground

600 V

Surge protection

6 kV peak per IEC 61010-1 600 VCAT III, Pollution Degree 2

Display

Digital:

6,000 counts, updates 4 per second

Bar graph

33 segments, updates 32 per second

Operating Temperature

-10 °C to + 50 °C

Storage Temperature

-40 °C to + 60 °C

Battery type

9 volt Alkaline, NEDA 1604A/ IEC 6LR61

Battery Life

400 hours typical, without backlight

Accuracy Specifications

DC millivolts

Range:	600.0 mV
Resolution:	0.1 mV
Accuracy:	± ([% of reading] + [counts]): 0.5% + 2

DC volts

Range/Resolution:	6.000 V / 0.001 V
Range/Resolution:	60.00 V / 0.01 V
Range/Resolution:	600.00 V / 0.1 V
Accuracy:	± ([% of reading] + [counts]): 0.5% + 2

AC millivolts1 true-rms

Range:	600.0 mV
Resolution:	0.1 mV
Accuracy:	1.0 % + 3 (dc, 45 Hz to 500 Hz)2.0 % + 3 (500 Hz to 1 kHz)

AC volts1 true-rms

Range/Resolution:	6.000 V / 0.001 V
Range/Resolution:	60.00 V / 0.01 V
Range/Resolution:	600.0 V / 0.1 V
Accuracy:	1.0 % + 3 (dc, 45 Hz to 500 Hz)2.0 % + 3 (500 Hz to 1 kHz)

Continuity

Range:	600 Ω
Resolution:	1 Ω
Accuracy:	Beeper on < 20 Ω, off > 250 Ω; detectsopens or shorts of 500 μs or longer.

Ohms

Range/Resolution:	600.0 Ω / 0.1 Ω
Range/Resolution:	6.000 kΩ / 0.001 kΩ
Range/Resolution:	60.00 kΩ / 0.01 kΩ
Range/Resolution:	600.0 kΩ / 0.1 kΩ
Range/Resolution:	6.000 MΩ / 0.001 MΩ
Accuracy:	0.9 % + 1
Range/Resolution:	40.00 MΩ / 0.01 MΩ
Accuracy:	5 % + 2

Diode Test

Range/Resolution:	2.00 V / 0.001 V
Accuracy:	0.9% + 2

Capacitance

Range/Resolution:	1000 nF / 1 nF
Range/Resolution:	10.00 µF / 0.01 µF
Range/Resolution:	100.0 µF / 0.1 µF
Range/Resolution:	9999 µF / 1 µF
Range/Resolution:	100 µF to 1000 µF
Accuracy:	1.9% + 2
Range/Resolution:	> 1000 µF
Accuracy:	5% + 20%

Lo-Z Capacitance

Range:	1 nF to 500 µF
Accuracy:	10% + 2 typical

AC amps true-rms (45 Hz to 500Hz)

Range/Resolution:	6.000 A / 0.001 A
Range/Resolution:	10.00 A / 0.01 A
Accuracy:	1.5% + 3
	20 A overload for 30-seconds max

DC amps

Range/Resolution:	6.000 A / 0.001 A
Range/Resolution:	10.00 A / 0.01 A
Accuracy:	1.0% + 3
	20 A overload for 30-seconds max

Hz (V or A input)2

Range/Resolution:	99.99 Hz / 0.01 Hz
Range/Resolution:	999.9 Hz / 0.01 Hz
Range/Resolution:	9.999 kHz / 0.001 kHz
Range/Resolution:	50 kHz / 0.01 kHz
Accuracy:	0.1% + 2

Notes:
1) All ac voltage ranges except Auto-V/LoZ are specified from 1 % to 100 % of range. Auto-V/LoZ is specified from 0.0 V.
2) Temperature uncertainty (accuracy) does not include the error of the thermocouple probe.
3) Frequency is ac coupled, 5 Hz to 50 kHz for ac voltage. Frequency is dc coupled, 45 Hz to 5 kHz for ac current.
4) Temperature Range/Resolution: -40 °F to 752 °F / 0.2 °F
2) Frequency is ac coupled, 5Hz to 30 kHz for ac voltage

Mechanical & General Specifications

Size

167 x 84 x 46 mm (6.57" x 3.31" x 1.82")

Weight

550 g

Warranty

3 years
