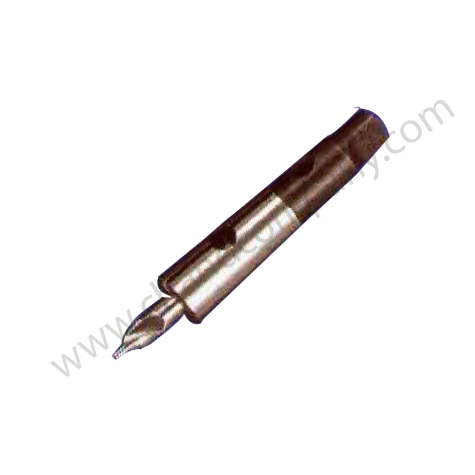

STANDARD SPLIT SLEEVES FOR CENTER DRILLS
MT-1    : BS –1, 2, & 3 + Metric Center Drills
MT-2    : BS – 2, 3 & 4 + Metric Center Drills
MT-3    : BS - 4, 5 & 6 + Metric Center Drills
Made from best quality spring steel EN-47 and appropriately hardened.
APPLICATION & ADVANTAGES :
Taper Shank drills are costlier compared to straight shank drills. Using split sleeves for drills straight shank drills can be used with almost the same accuracy as the taper shank drills.
Drill Chucks loose their accuracy over a period of time. Split Sleeves retain their accuracy for life. Furthermore there is no positive drive in drill chucks. The drive slot of split sleeves offer a positive drive which prevents the slippage of taps (& drills) as in case of drill chucks.
The Split Sleeves can be used in conjunction with the Quick Change Chucks for non-reversible tapping as well as drilling using straight shank drills.

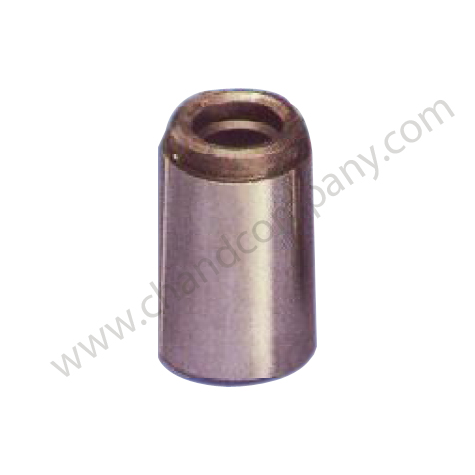

LATHE HEADSTOCK SLEEVE
 Available in Size : MT 3-5, 4-6
 Made from case hardened alloy steel.
 Precision Ground. Runout 0.015 mm max.
 Suitable for lathe headstock spindles
