HOME > truthread > M/ KEG Taper Thread Gages (DIN 158)

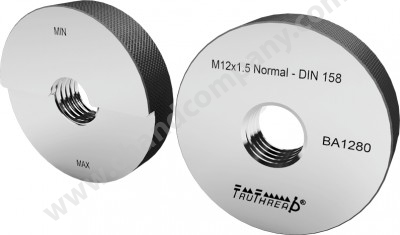

M/ KEG Taper Thread Gages (DIN 158)

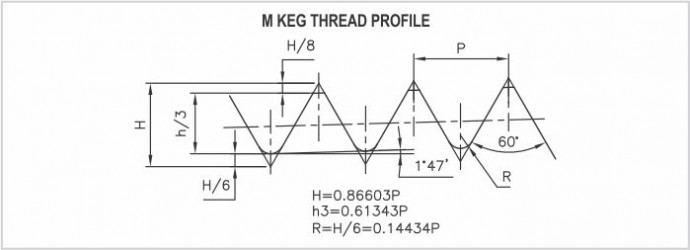

M KEG Metric Taper Threads are used for oil & grease Nipples where self sealing connections can not be obtained by parallel threads with sealing washers.

Specification:
DIN Standard: Basic Dimensions: DIN 158 Part 1-1997 & Gauging Practice: DIN 158 Part 2 - 1997

Manufacturing Range:
Parallel Limit Ring Gauges AND Taper Threaded Check Plug Gauge to check parallel ring for diameters from M_c5 to M_c60.
Pitches covered are from 0.8 , 1, 1.25, 1.5 & 2 mm.

We also manufacture Taper Ring Gauges as per old DIN 158 -1986 specification.
