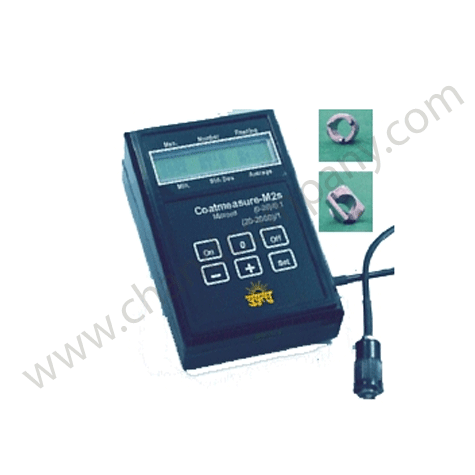

Coating Thickness Gauge
-
Models M2s, M6s & M12s
For
Non-magnetic coatings on magnetic base. Ideal for
Coatings on MS.
- Model C2s & C4s
For Non-conductive coatings on conductive base.
For Anodizing and Coatings on Brass & Aluminium.
- Model (M&C)2s
Combined Model of M2s & C2s.
Statistics (Number of
readings, average, Std. deviation, max. & min.) are
updated with every reading and displayed simultaneously.
It
helps to decide how many readings are to be taken. Continue
taking readings till you start getting reasonably consistent
statistics.
Third party Test Report
traceable to international standards.
Interchangeable probe sleeve tip(A) having 3 points
for flat & spherical surface.
Interchangeable
probe sleeve tip(B) having
V block for
cylindrical surfaces.
Auto-Off. If
instrument remains unused for 2 minutes, it is switched off
automatically. It saves battery.
Last calibration
retained and Auto-retrieved.
Manipulation of readings
not possible.
Models M have Hard-Chrome Plated Probe
tips and Models C have Probe tips of Wear Resistant Material.
Spring loaded probe sleeve with tip ensures probe is
held perpendicular.
A beep sound is heard when reading
is obtained.
Low battery indication - Display shows
BAT continuously.
|
Test Base |
- To check satisfactory
working. |
|
Testfoils |
- For
calibration. |
|
Maximum number of readings |
- 254. |
|
Working Temperature |
- 0 to 50 degree
C. |
|
Supply Dry Battery |
- 9V (6f22). |
|
Display Digit Height |
- 5.6 mm. |
|
Instrument Size |
- 127x83x41 mm. |
|
Instrument Weight |
- 300 gms. |
|
Probe wire Length |
- 1000 mm. |
|
Socket for AC Adaptor. |
|
Wooden
Case. |
Extra
Accessories :
- Ac Adaptor.
- Handsfree Pouch - held by waist band &
neck sling.
On Request, instrument
mfd. with :
- Carbide/Ceramic Probe Tip (Only With Models
M).
- Angle probe with Extension Rod of length mm
100/200/300.
| Coatmeasure |
|
M2s |
C2s |
(M&C)2s
|
M6s |
M12s |
C4s |
| Range/Resolution |
microns |
(0-20)/0.1
(20-2000)/1 |
(0-20)/0.1
(20-2000)/1 |
|
(0-1000)/01
(1000-6000)/10 |
|
(0-1000)/01
(1000-4000)/10 |
| |
mm |
|
|
|
|
(0-1)/0.001
(1-12)/0.010 |
|
| Accuracy |
microns |
1 or 1% |
2 or 1.5% |
Refer |
10 or 1% |
10 or 1% |
10 or 1% |
| Probe Size, Dia. x Length.
|
mm |
14 x 30 |
18 x 44 |
M2s |
17 x 30 |
30 x 45 |
18 x 44 |
| Min. Base Thickness |
mm |
0.3 |
0.3 |
& |
0.3 |
0.5 |
0.3 |
| Min.Area for Flat - a circle of
dia. |
mm |
10 |
11.5 |
C2s |
11.5 |
23 |
11.5 |
| Min. dia. for
Cylinder-outside. |
mm |
6 |
8 |
|
8 |
10 |
8 |
| Min. dia. for
Cylinder-inside. |
mm |
15 |
20 |
|
20 |
40 |
20 |
| Min. radius for Spherical
Surface, Outside. |
mm |
8 |
10 |
|
10 |
20 |
10 |
| Min. radius for Spherical
Surface, Inside. |
mm |
15 |
20 |
|
20 |
30 |
20 |
